Array Microphone Conferencia Solución
VISSONIC Digital Array Microphone Sistema De Conferencias Solución
Content
1. Sistema overview
2. Sistema advantages y features
3. Sistema connection diagram
4. Sistema equipo description
1. Sistema overview
En El news, Allí son always 5 microphones placed En front of El leaders. Este es no solo Para backup, pero también forms UN microphone array. Two más microphones son placed symmetrically En front of El sound source UN enhance directivity eliminate noise. Enhance reliability.
Based EN El characteristics y advantages of El microphone array, VISSONIC developed El SONIC series array microphone Sistema De Conferencias.
Microphone array technology integrated microphones proporcionar UN corridor-style feature, que ensures ese speakers can tener high-quality sound En UN wide range of activities. Within Este range, El speaker can move freely, stand, sit, turn su head, move forward without affecting El sound effect. Use El silent touch microphone button UN turn Ello EN o off.
2. Sistema advantages y features
-Keep El desktop clean y tidy, connect El microphone Con UN single line, usted can choose hiding underneath o from El rear of El unidad
-no gooseneck microphone, easy UN pick up, cooperar Con powerful DSP processing host UN prevent howling y realize local sound amplification
-Voice-activated speech, automatically within El pickup range, automatically turns EN El microphone cuando speaking, y automatic Conferencia logic algorithm UN ensure smooth speech y reasonable switching
-El ultra-long pickup distance of 80CM forms UN pickup capsule, que allows El speaker UN move freely flexibly use body language
-All-Digital Red core technology, using CAT5e wiring, profesional RJ45 connection, host Con DANTE protocol output, can ser used Con UN complete set of DANTE protocol audio Sistema debugging UN achieve ideal acoustic effects.
2.1.1 Microphone array
VISSONIC array microphones tener multiple pickup heads UN establish su own pickup channels y ranges. no matter quien es speaking, El sound pressure level remains unchanged, reducing environmental noise y ensuring El acoustic feasibility of local sound reinforcement.
2.1.2 Array microphone technology-corridor characteristics
Larger depth pickup range, no need UN adjust El direction of El gooseneck microphone; El speaking state es muy natural y relaxed, El speaker can turn su head, move closer UN o away from El microphone, stand up y sit down, bow o raise su head, while El sound quality remains basically unchanged.
2.1.3 Built-En DSP processing circuit
VISSONIC's all-Digital Sistema es equipped Con El latest DSP processing circuit, Con AEC, AGC, AFC functions.
AFC adaptive feedback cancellation—independent adaptive feedback cancellation, quickly eliminate howling frequency points
AEC echo cancellation technology—eliminates El echo of remote video Conferencia terminals y remote audio conferences
ANC automatic noise cancellation technology-can identify El noise gate through que human voices pass, y effectively eliminate environmental noise
Cada unidad tiene su own FPGA chip Con 16-band equalization y sensitivity adjustment.
2.1.4 Voice control speech
Automatically within El pickup range, El microphone es automatically turned EN cuando speaking. Different from ordinary threshold voice control, VISSONIC voice control speaks Con automatic Conferencia logic algorithm UN ensure smooth speech y reasonable switching.
2.1.5 IP-based audio Sistema, supporting DANTE protocol
VISSONIC Totalmente Digital Red core technology, UN Red cable connected UN El array microphone, Con POE power supply, y El host Con DANTE audio output, que can ser debugged Con El entire DANTE audio Sistema UN achieve ideal acoustic effects.
2.1.6 Mixed use of wired y wireless meetings
Para multifuncional cumpliendo rooms, training rooms, Conferencia halls, etc... ese often need UN ser changed, El unidad de presidente es generally UN limited fixed installation method. El audience seats below son temporarily increased o reduced according UN needs. EN Este time, El wired y wireless Sistema De Conferencias es mixed. Proporciona great convenience, El wireless unidad hace no need UN ser wired, y can ser placed directly as needed.
2.1.7 HD camera tracking
El Sistema controller tiene su own camera tracking function, que can send codes UN El camera y camera switcher y recorder o seamless matrix UN realize automatic tracking y recording of high-definition cameras.
3. Sistema connection diagram
4. Sistema equipo description
4.1 VIS-DCP2000-R Totalmente Digital Networked DSP Conferencia Processor Para Array mic
Features
El unique AUDIO-LINK Digital ring Red technology achieve full-Digital signal transmission y processing.
Single CAT5e cable transmits 64 channels of audio y various information.
All microphone unidades support audio, ID independent output. Working Con voice recognition Sistema UN achieve voice role separation.
High-fidelity sound quality, lossless audio transmission technology, 48K audio sampling frequency, 20Hz ~ 20KHz response frequency.
UN single Conferencia controller can realize El independent control y merging of 4 Conferencia rooms, can handle El cascade of multiple Conferencia controllers UN realize El merging y separation of larger Conferencia rooms (including Conferencia management, etc...).
"Hand-En-Hand-Loop-Red" connection hace El Sistema always working perfectly no matter changing discussion unidad o having cualquier malfunctioned unidades.
El sensitivity of El unidad microphone y 8 segment equalizer EQ adjusted independently.
El main controller comes Con self-learning AFC automatic feedback algorithm, combined Con array microphones, short-stem microphones UN achieve ultra-long pickup distance.
Support AGC (Automatic Gain Control)/AFC (Adaptive Feedback Cancellation)/ANC (Acoustics Noise Cancellation) Sound output por separated zones function, Cada zone es automatically adjusted according UN El volume of El position of El microphone, achieve longer distances pickup without whistle.
Echo cancellation, remote two-way real-time call Con another Conferencia controller o another third-party video conferencing terminal.
USB recording, controller monitor, advanced noise cancellation technology UN realize clearer recording.
Display Con date, time management, y support speech time, countdown speech.
Optional DANTE output module Con other DANTE equipo used.
Can drive 2*120W POE speaker through extension unidad principal, support up UN 16 POE speakers.

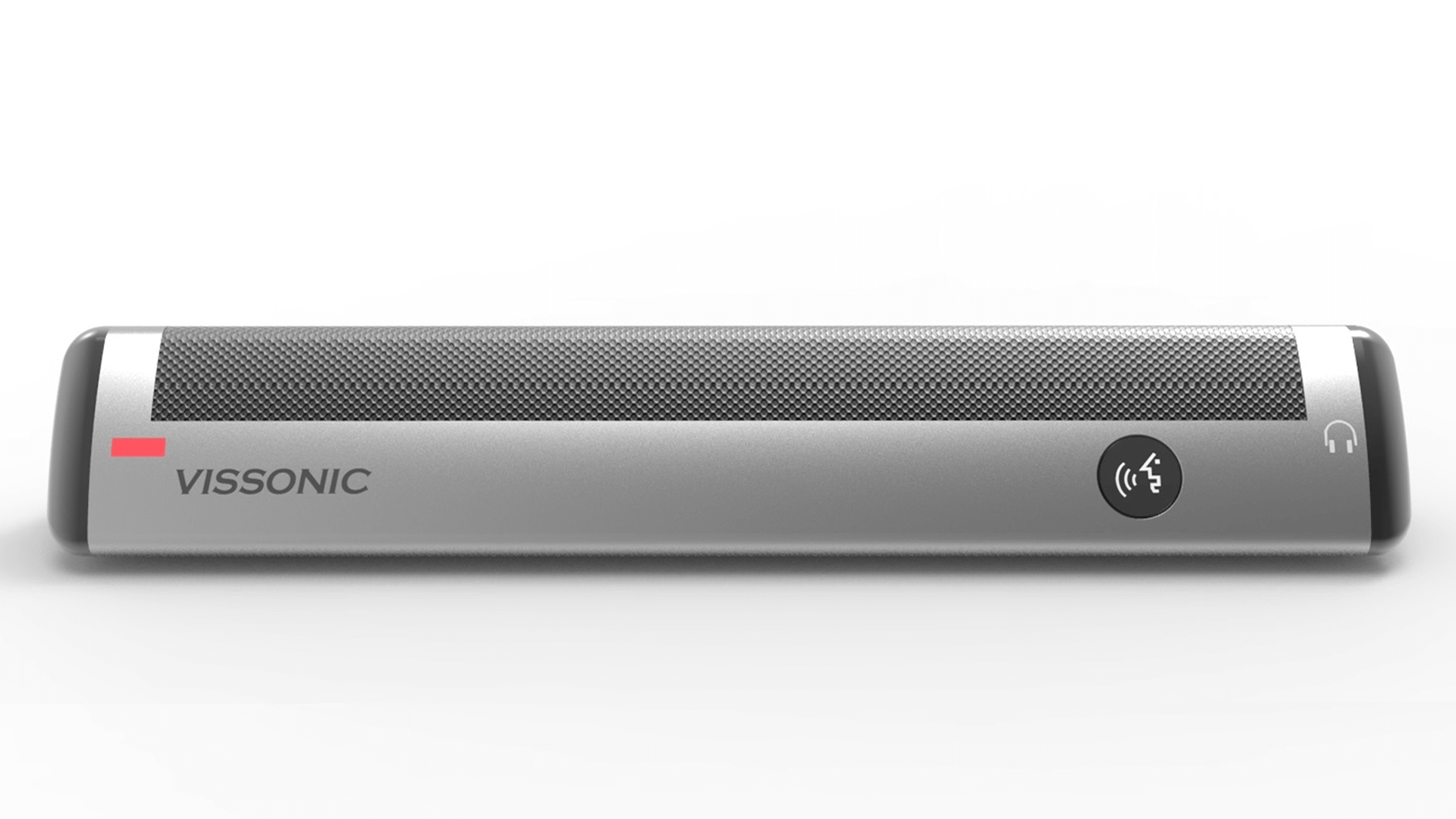

4.2 VIS-DAC-T/VIS-DAD-T Digital Array Microphone Chairman/Unidad De Delegado
Stylish y modern design Con touchable button
ARRA-TechTM Microphone array technology El voice pick-up distance up UN 120CM
Priority button y approval button Para unidad de presidente
Standard CAT5e y RJ45 connectors son used En microphone UN proporcionar más conveniente EN project y maintenance.
One 1.5m cable out UN connect El splitter box y keep El table clear
El unique AUDIO-LINK Digital ring Red technology achieve full-Digital signal transmission y processing, completely avoid El RF interference from cell teléfono similar devices.
Strong Sistema robust por El "Hand-En-Hand-Loop-Red" connection technology
Support Hot plug y play
4.3 VIS-CNB Splitter box
Features
no noise design
Compact size
Splitting two channels Para CU/DU
4.4 VIS-CDC Series Full HD Camera
.jpg)
Features
H.265 support
H.265 encoding supports Conferencia cameras, y can realize full HD 1080p / 60fps video streaming through ultra-low bandwidth.
1080P Full HD
Using UN new generation of Panasonic's 1 / 2.8 inch high-quality high-definition CMOS sensor Con 2.07 million efectivo pixels, Ello can achieve high-quality images Con UN maximum resolution of 1920x1080
Ultra high frame rate
El output frame rate of 1080P es up UN 60fps, El output frame rate of 720P es up UN 120fps (solo supported por El Red), y 640x480P can ser up UN 240fps (solo supported por El Red, optional).
AAC audio coding
supports AAC audio coding, Con better sound quality smaller bandwidth.
Local storage
supports local storage module, without NVR recording directly UN local USB flash drive.
El low light y high SNR of El CMOS sensor combined Con 2D y 3D noise reduction algorithms effectively reduces El noise. Even under low illumination conditions, El picture can still ser kept clear y clear.
Various interface, support HDMI output, 3G-SDI interface, efectivo transmission distance up UN 150 meters (1080p30 o less). HDMI, SDI, y Red can ser output simultaneously. Ello también supports CVBS interface.
20x Optical + 32x Digital Zoom Use TAMRON high quality super telephoto lens, support 20x optical zoom, y 32x Digital, 30x Optical + 16x Digital Zoom (Model VIS-CDC-30-S)
Remote Control
Using RS232/485 interface, all El parameters of El camera can ser remote controlled por El high-speed communications.

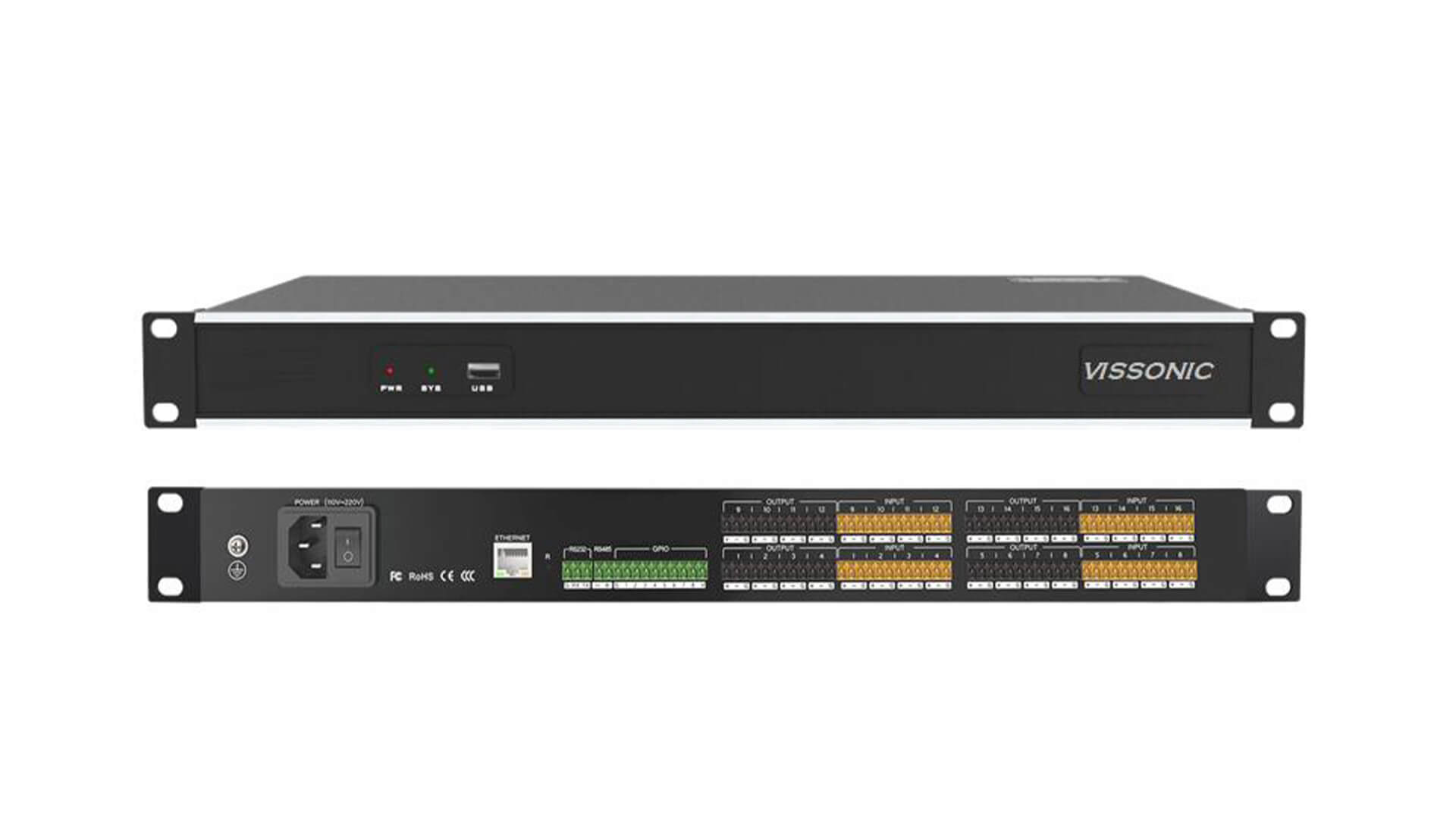

4.5 VIS-DSP8 dB-NET series Digital DSP Audio Matrix
Features
8,12,16 CH balanced microphone input, using El phoenix plug
8,12,16 CH balanced microphone output, using El phoenix plug
UN variety of audio formats En front panel can extend El USB multimedia storage Para recording.
Can control por PC, móvil teléfono, tablet, web, key panel, Control Sistema y así sucesivamente
Main algorithms, such as built-En signal generator, auto mixing, feedback suppressor, echo cancellation, noise cancellation(optional) etc...
Input per channel: preamplifier, signal generator, expander, compressor,5 parameters of equilibrium.
Output per channel: 31 segment graphic equalization, delay, divider, limiter
Full functional matrix mixing, Con El built-En patented component matrix adjustment function.
Built-En automatic video tracking function, easy UN implement video conferencing, support scene presupposition function, power automatic protection memory function
Allí son más than dozens of profesional audio processing modules, such as: 5-band full parametric equalizer, 31-band graphic equalizer, high-precision compression y limiter, high-sensitive expansion y automatic gain, crossover, automatic mixing Amplifier, delayer, matrix mixer, component matrix adjuster, noise threshold, mute module, signal generator y signal indicator level meter, etc...
El built-En media control code generator hace no require El self aplicación formula UN edit El code.
El equipo Proporciona UN universal programmable Yo/O port y sets firefighting functions.
RS-232 bidirectional serial control interface; Ello can control other external devices such as video matrix, video camera y other RS-232 devices, o receive third party RS-232 control
El phantom power supply (Cada input) +48 VDC10mA.
