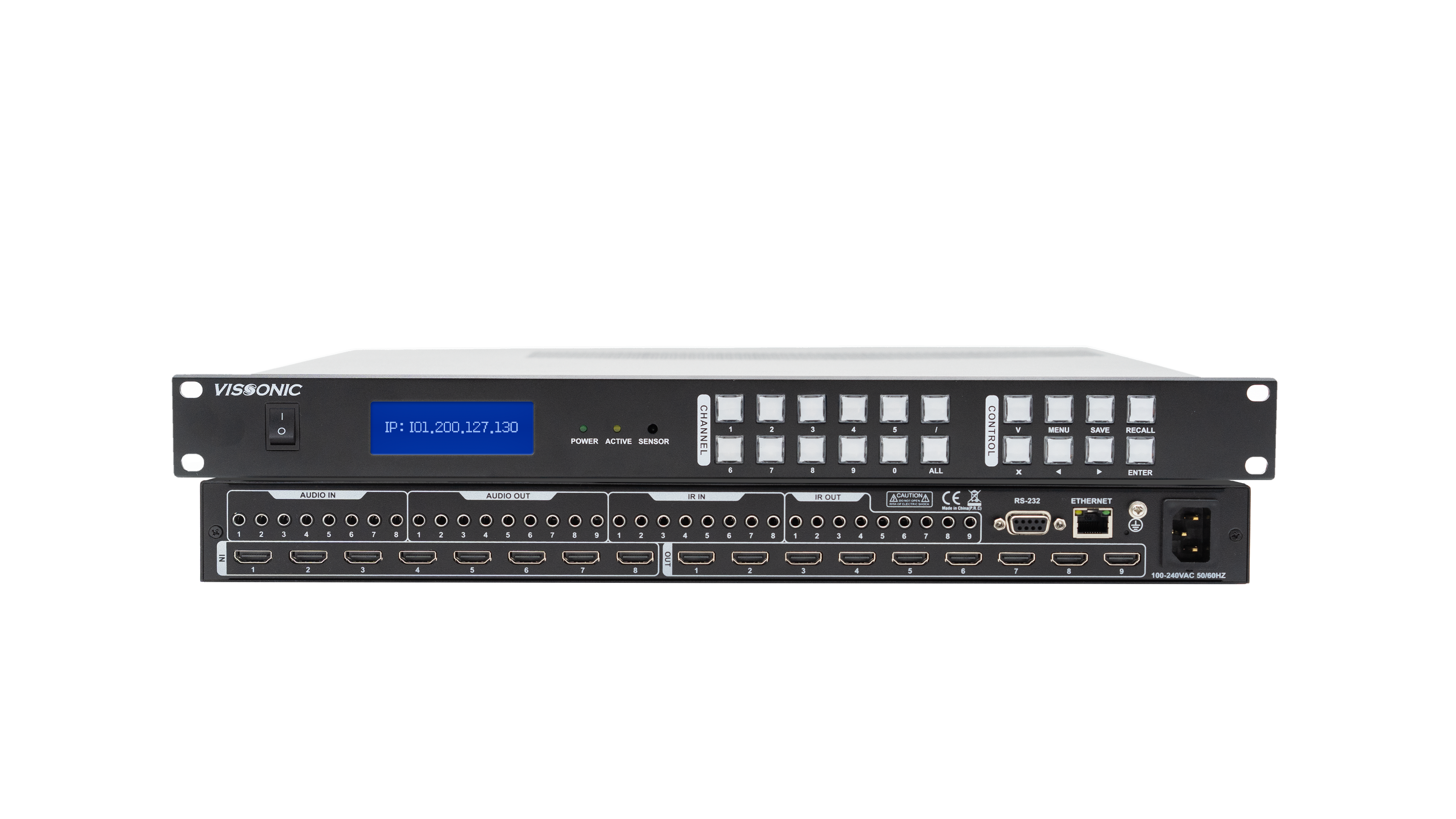

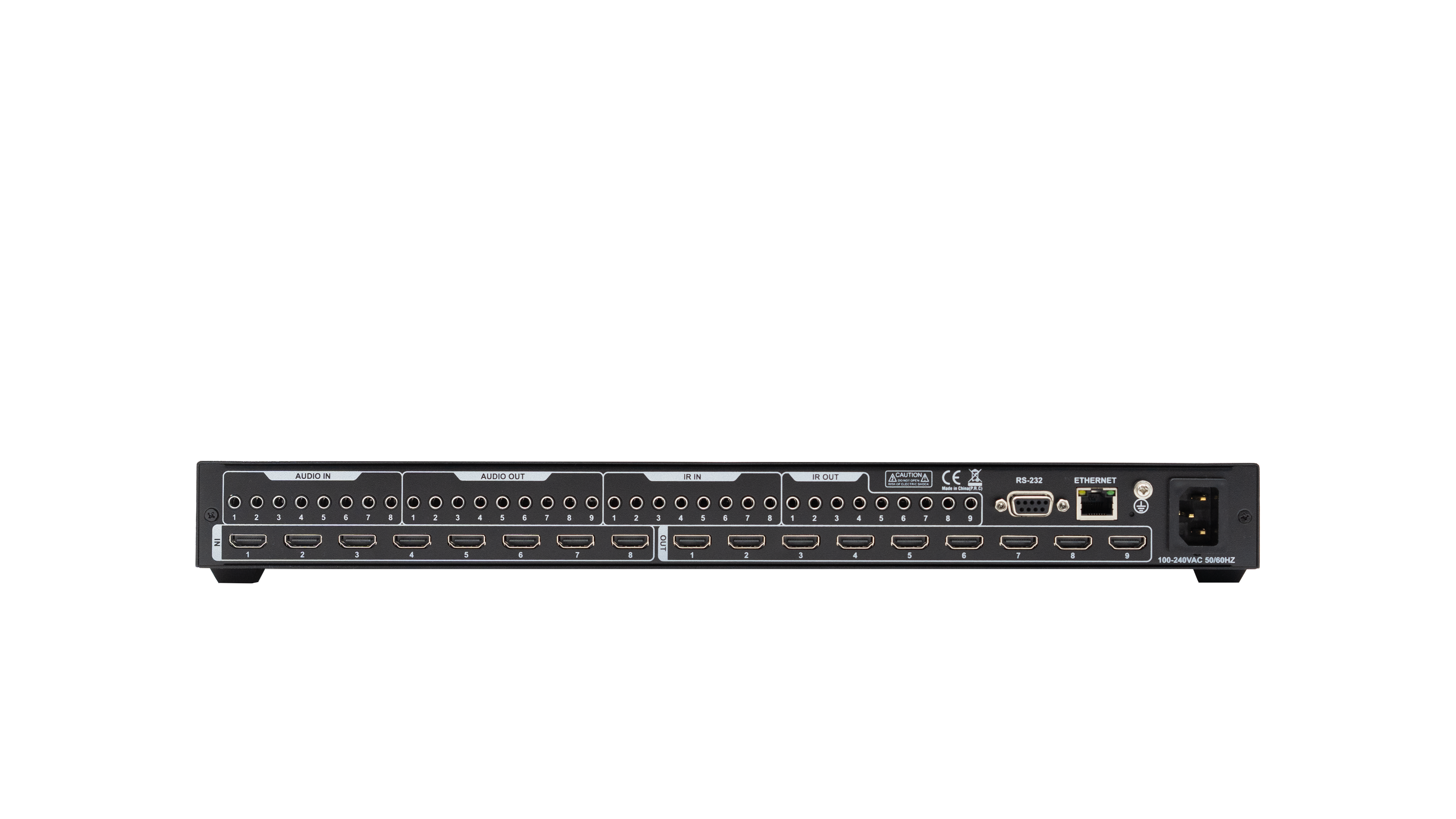

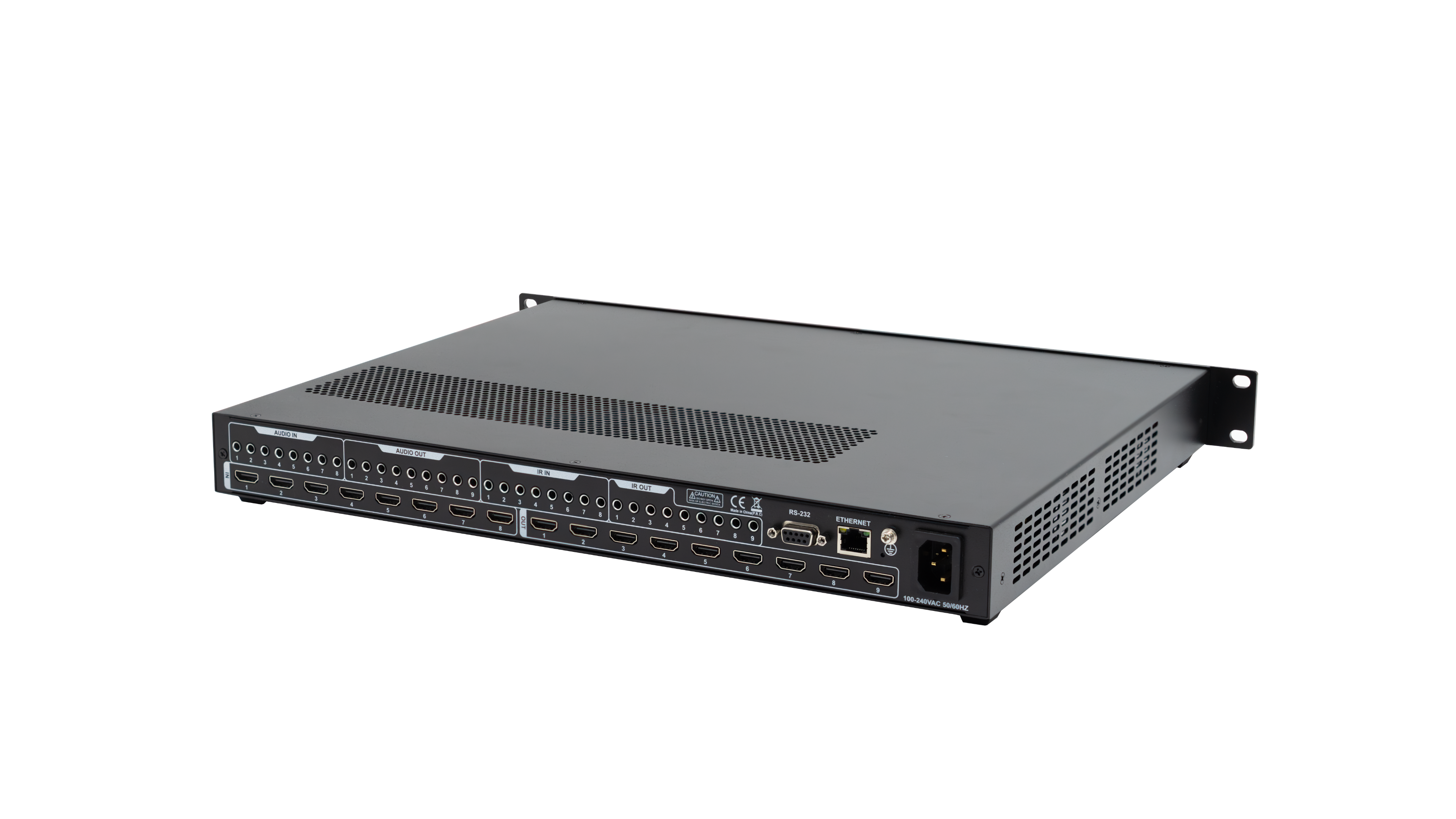

4K Sin Interrupciones Multi-Función Matriz y Splicing Procesador con Multiview

● 8 HDMI inputs and 9 HDMI outputs with real-time seamless switching;

● 8 IR and 8 analog audio inputs, along with 9 IR and 9 analog audio outputs;

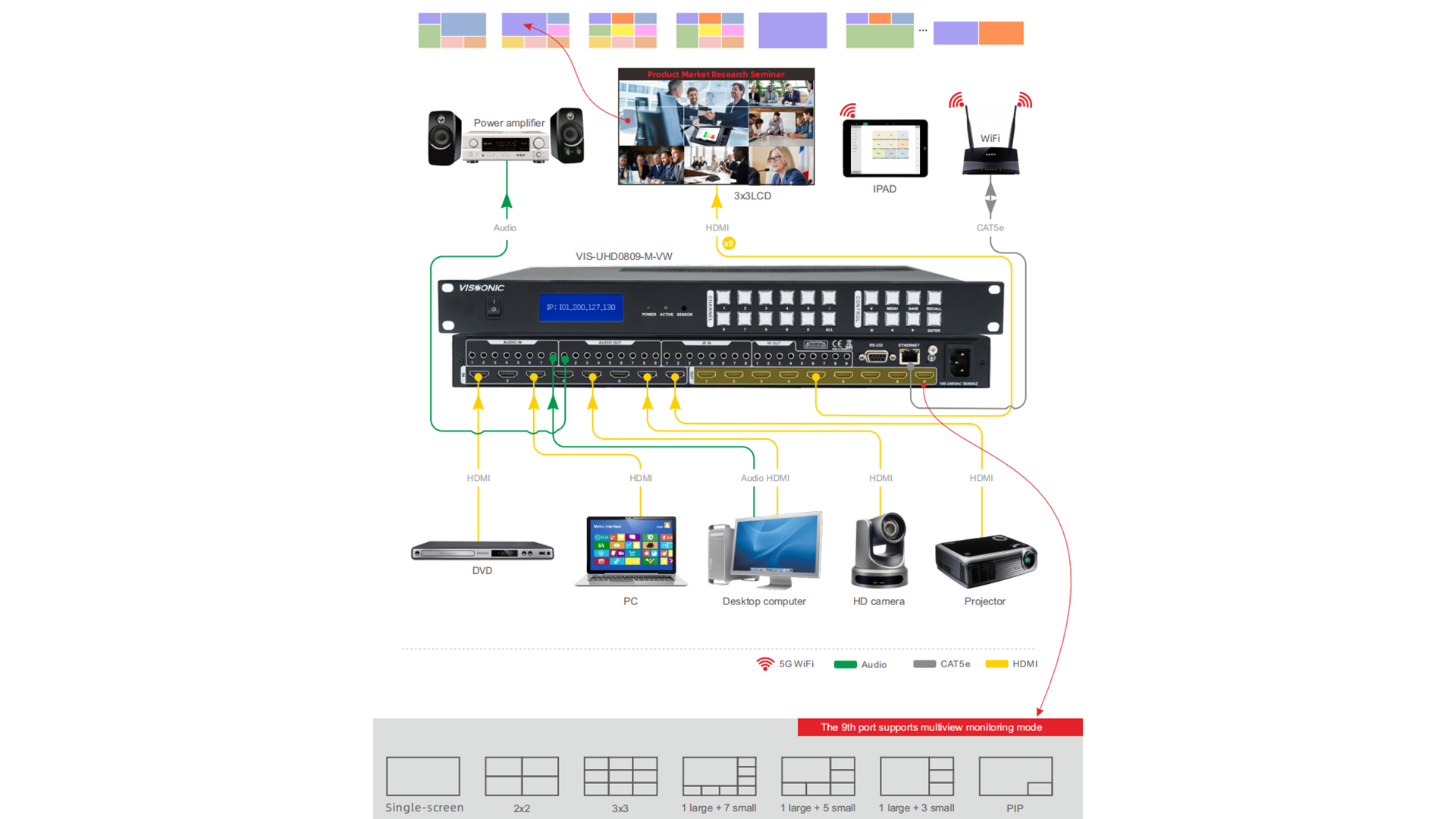

● The 9th output port seamlessly switches between video wall and multi-screen modes;

● The system supports PIP, quad split, 3x3 grid, and POP configurations. POP offers customizable modes like 1 large 7 small, 1 large 5 small, and 1 large 3 small screens, ideal for input monitoring or multi-participant conferences;

● Input and output support up to 4K@60, 4:4:4, compatible with HDMI 2.0 and HDCP 2.2;

● Intelligent analysis that automatically analyzes the EDID of display devices to output the best resolution;

● EDID management: select from built-in files, read from output devices, update EDID;

● Supports input image clipping, allowing part of the input image to be displayed as a signal;

● Supports adding logos to input images;

● Built-in signal generator with 11 professional test images on input and output channels;

● Outputs can be configured for seamless matrix output or single-layer stitching output;

● Supports synchronized stitching for LED or LCD large screens, with a maximum of 3x3 or 2x4 configurations;

● Supports scrolling subtitles on stitched large screens;

● Independent switching for audio and infrared;

● Supports graphical software control;

● Input volume controls adjustable channels and mute button;

● Multiple control methods: front panel, RS232, TCP/IP software, web control;

● Supports multiple flexible stitching configurations for any port to meet various application needs;

● Supports DHCP, with the ability to enable or disable via software or front panel;

● Various output modes available, including full screen and proportional scaling;

● Supports one-button freeze/unfreeze for output images;

● Intelligent management that shows real-time input signal status and output connection status on software;

● Adjustable HDCP version for inputs;

● One-button output screen on/off;

● Supports multi-user management with customizable permissions and port control;

● Supports preset management with one-button save/recall;

● Supports seam settings to compensate for gaps during screen stitching
