Sistema Overview

VISSONIC VLI series digital Infrared Language Distribution Sistema, también known as digital Infrared Simultaneous Interpretation Sistema, es UN Sistema used EN multi-language meetings. EN order UN ayudar El participants understand El Conferencia content, El Sistema transmits El speech of El mother tongue UN El receiver y headphones EN El hands of El participants. Infrared es used as El transmission medium, y El principle of direct light y diffuse reflection es used UN achieve signal coverage of El venue. Participants can move around freely without affecting listening. Por Lo Tanto, ellos son widely used EN grande, medium y small Press Conferencia hall, academic lecture hall, school auditorium, various conferencia internacional sites, etc...

Sistema Features

VISSONIC VLI series digital Infrared Language Distribution Sistema tiene El following features

● Comply Con internacional IEC 61603-7 y IEC 60914 standards
Este standard determines whether El infrared Sistema can ser used EN Europe, national grande-scale conferences, Europe as early as 2011 no longer use analog equipo ese hace no cumplir El standard
● Compatible Con other infrared simultaneous interpretation Sistemas conforming UN El IEC 61603-7 standard, y can ser cross-used
Whether El Sistema conforms UN El standard, El más intuitive way UN verify capital es whether Ello es compatible Con other manufacturers’ receivers y transmitters ese conform UN El standard. Yilang no solo cumple El standard, pero también verifies ese Ello can ser cross-mixed Con BOSCH, TELEVIC, TAIDEN infrared Sistemas, y Tiene sido delivered UN relevant internacional users.
● All-digital DQPSK digital modulation/demodulation technology guarantees sound quality gives UN excellent listening experience
El use of DQPSK digital modulation es UN requirement of El IEC 61603-7 standard, y más analog Sistemas use FM modulation.
● Audio data es transmitted EN El 2~8 MHz frequency band, proporcionando up UN 32 voice channel options
Advanced modulation technology enables El Sistema UN support más language channels, y can support 32 language channels
● Sunlight, anti-glare, fluorescent light, LED light y other light sources interference
El super anti-interference ability hace El infrared receiver adapt UN various venues, even El open-air venue during El day, UN grande number of LED screen venues, y LED lighting venues son no affected.
● Con beautiful ergonomic receiver design
● El friendly LCD interface displays El current language name, current channel, signal strength, battery power, volume y other information
● El industry’s unique arc-shaped grande-angle, ultra-long-distance radiation panel, covering UN distance of 76 meters, es UN powerful signal coverage tool Para grande-scale venues of thousands of square meters
● Con AUDIO-LINK red interface y VISSONIC CLEACON series Sistema De Conferencias UN achieve seamless integration
● Open DANTE red interface, can ser connected UN DANTE audio red

VISSONIC IR Wireless Language Distribution Sistema (IR interpretation Sistema) enables multiple translated languages UN ser transmitted via infrared UN delegates throughout UN Conferencia instalación. El Sistema es available EN from 4 UN 32 channels, Cada channel distributing UN separate language. El Sistema can ser used independently O combined Con VISSONIC Conferencia Sistemas, proporcionando UN total solución Para cualquier instalación.

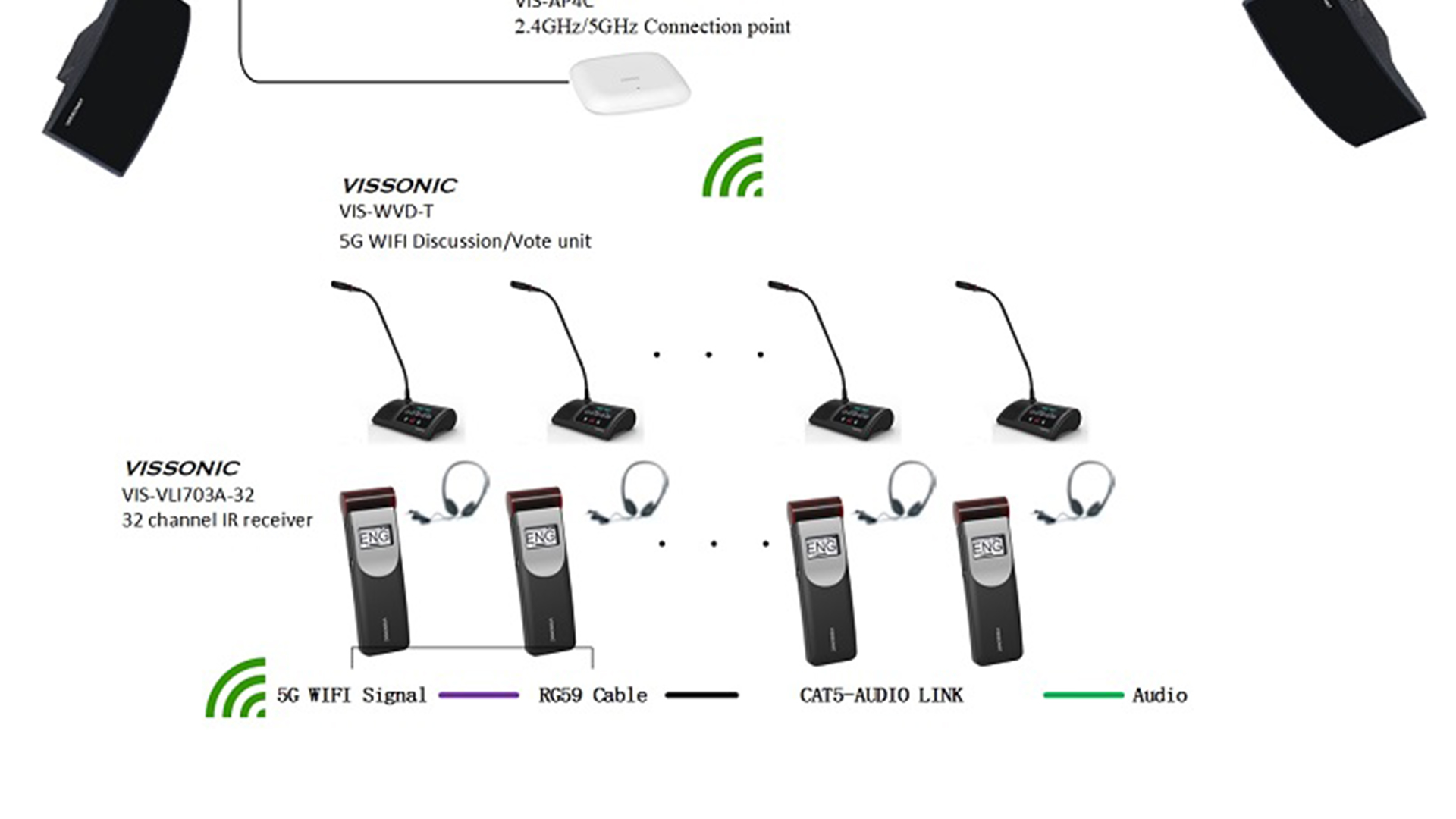

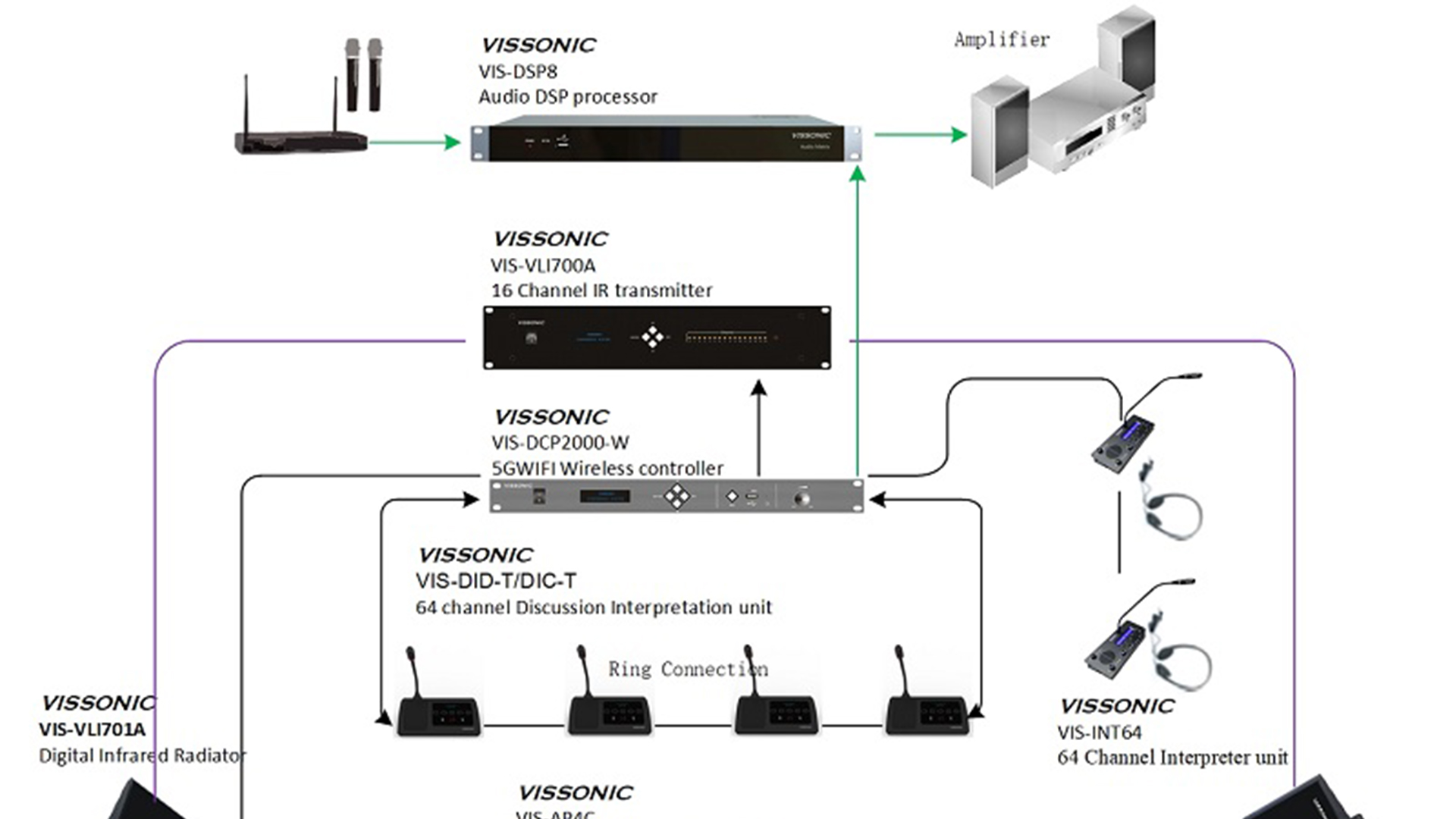

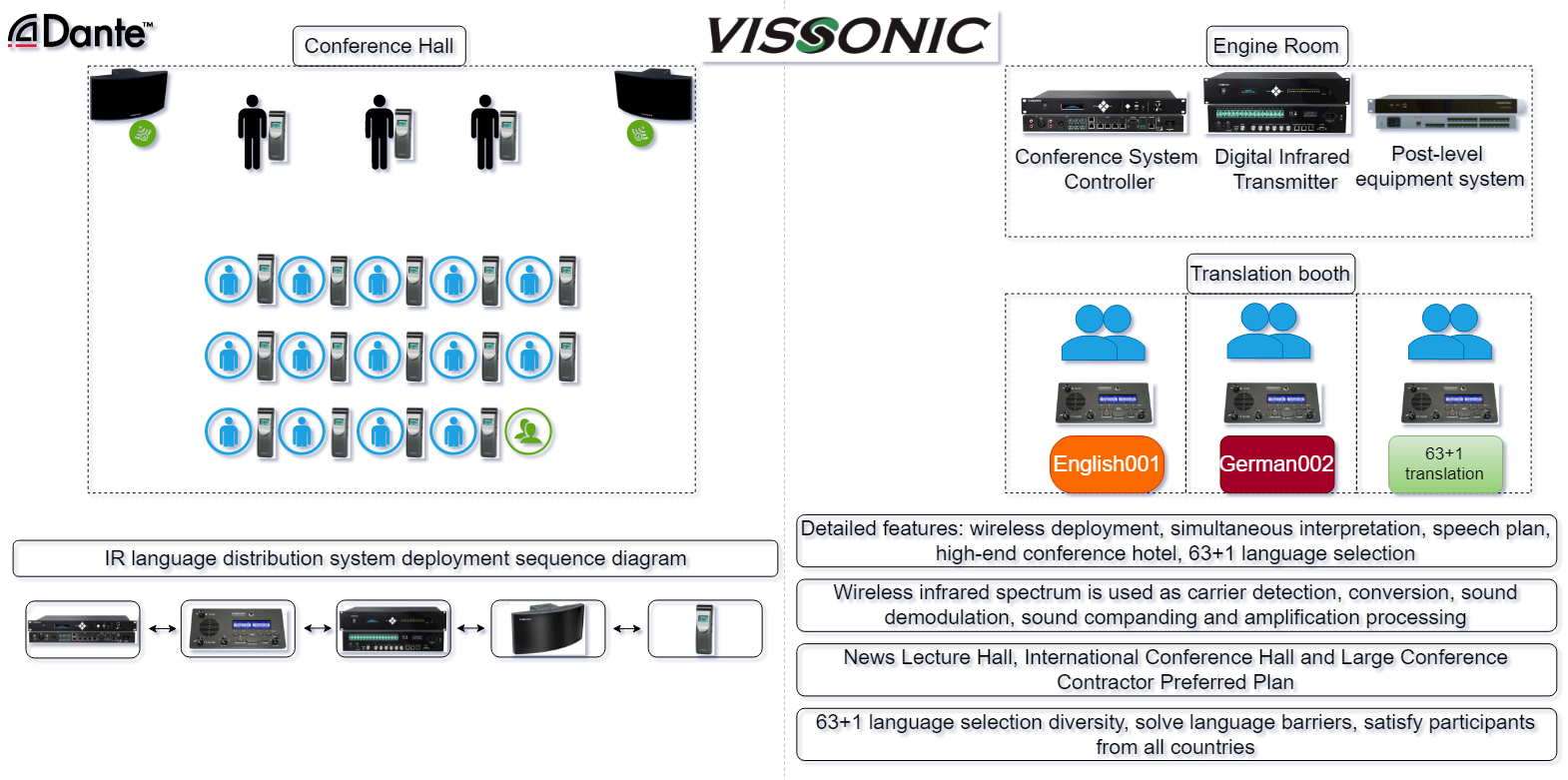

Sistema Diagram

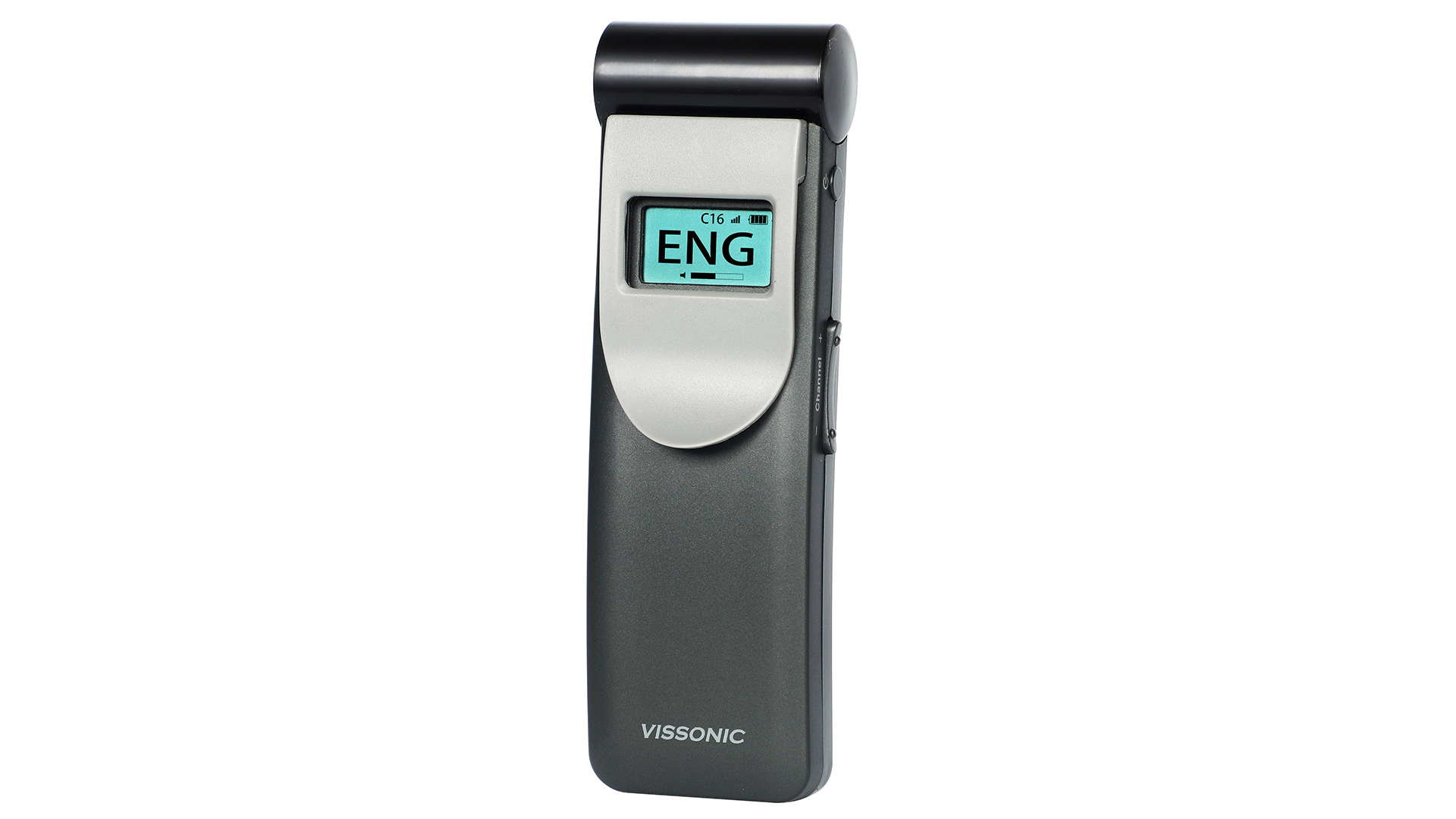

Estos ergonomically designed pocket receivers incorporate El latest electronics technology. VIS-VLI703A series IR receivers, que can receive up UN 32 language channels y es equipped Con selector de canales, volume control, power switch, Ø 3.5 mm stereo earphone jack. UN LCD displays channel number Con language name, received signal intensity, battery capacity volume. El pocket receivers can ser used Para both language y music distribution.

VIS-VLI703UN digital Infrared Receivers Para translation

● Qué's más, Ello can use VISSONIC rechargeable battery pack O regular AA battery Para using freely.
● Compliant UN IEC 61603-7 y IEC 60914
● Compatible Con cualquier other IR simultaneous interpretation Sistema compliant UN IEC 61603-7
● digital infrared processor Con DQPSK digital modulation/demodulation technology
● Transmitting EN 2~8 MHz frequency band eliminates disturbance from high frequency lighting Sistemas
● Channel selection via up/down button, en más 4,8,16 O 32 channels available
● LCD display Con channel number, language name, battery signal status indication
● Number of available channels es always El igual as El number of channels EN use por El Sistema,eliminating El need UN scroll through unused channels
● Adjustable volume
● Optional lithium rechargeable battery pack O 2x AA battery
● Unique 270º super wide reception angle, ensuring perfect sound quality even Cuando casually placed
● Audio signal automatically muted Cuando signal es también low, ensuring ese El user receives solo high quality audio.
● Ergonomically compact y elegant design
● Lightweight y handy receiver EN conjunction Con single earphone O headphone Para easy comfortable use
● Can ser hung Más De El neck via UN nice strap O fit into El shirt pocket
● Freedom of movement within El range of IR power radiator
● no limit UN El receiver number within El IR power radiation range
● Works without errors, even EN bright sunlight
● Built-EN high precision rechargeable circuitry UN prolong battery life
● Environmentally-friendly lithium rechargeable battery pack
● no power consumption y auto-off Cuando headphone es disconnected after 5 minutes


Controls y Indicators

LCD displays channel number, language name, battery capacity, signal intensity volume Power switch
selector de canales buttons
Volume control buttons


Interconnections

Ø 3.5 mm stereo earphone jack
Charging contacta

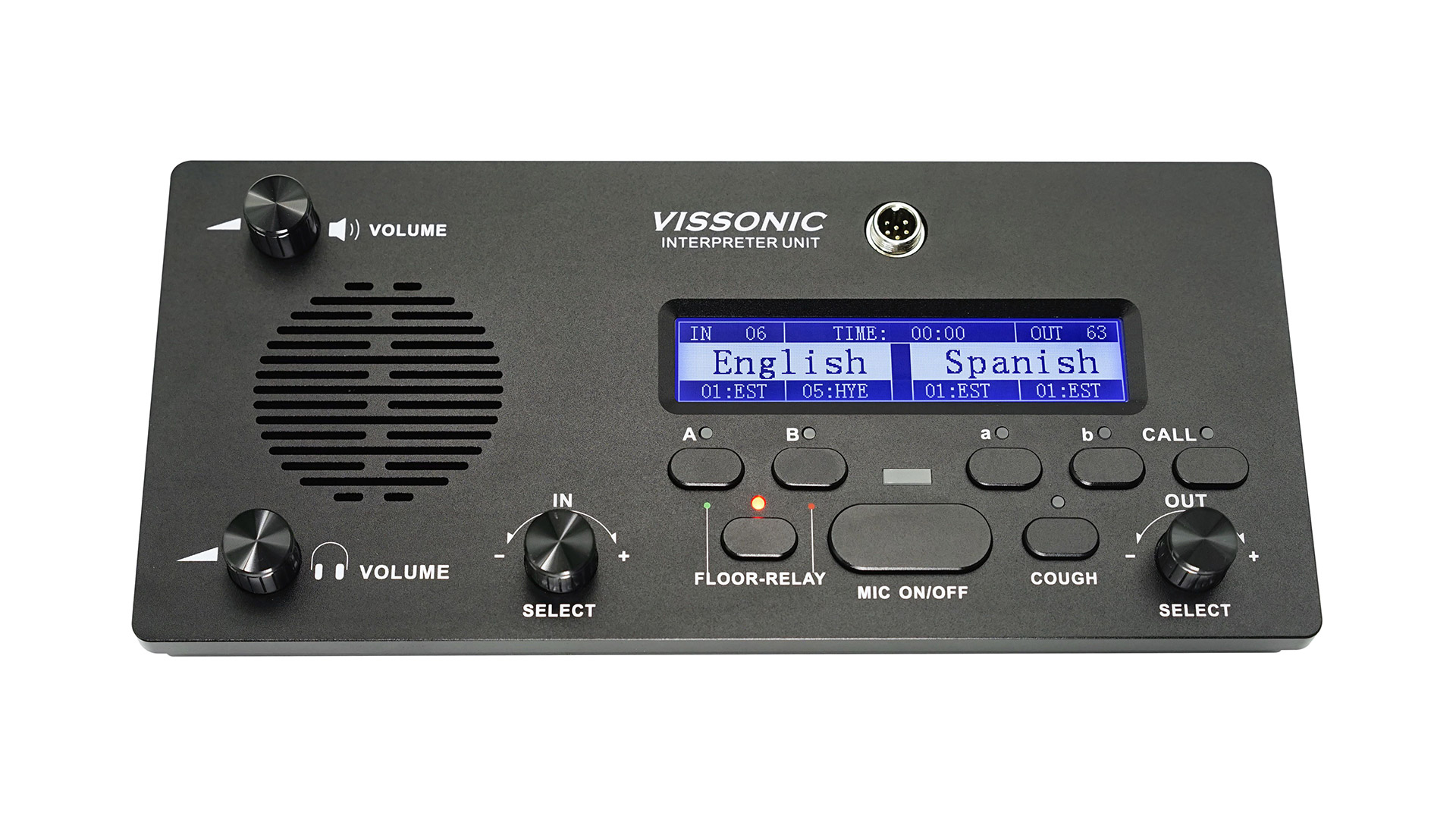

VIS-INT64 es 64 channels interpreter desk ese enables direct y relay interpretation available EN 63+1 languages UN proporcionar UN easy relax time during interpretation work.

VIS-INT64 64 Channels Interpreter Desk

Accommodates up UN 64 interpretation channels (incl. floor channel)
digital audio technology, built-EN high-speed DSP processing.
Supporting 48 kHz audio sampling rate, 30 Hz UN 20 kHz frequency response en all 64 channels
Anti-interference por cualquier RF signal Con metal housing design.
Hot plug y play, Removable microphone design
El volume of Loudspeaker y earphone jack support separated adjustment.
Direct y relay interpretation available
Hearing protection direct y relay interpretation available
Interpreter Unidad can ser set as operation Unidad y all interpreter unidades support Internal communication Con operator Unidad
Language y Sistema configuration from El interpreter desk’s configuration menu
Short message y tea service function
COUGH key UN mute El MIC UN avoid El unnecessary sound UN El output
Two Interpreter dual user
El speaker y El headset’s volume should ser regulated alone. If all microphones EN El igual booth son off, El loudspeaker será play floor language O interpretation channel
Support El headset microphone y pluggable microphone.
Channel interlock function permits solo one microphone en UN channel UN ser activated en cualquier time, ensuring El uniqueness of language channels
Two necessary modes within one interpreter booth: Interlock y Override
UN-B pre-select input key UN quickly select Input channel
El timing function Para indicating El interpretation time.


Controls y Indicators

Microphone mounted en UN flexible stem, complete Con UN light ring
Headphone volume controls knob
Speaker volume controls knob
UN-B selector de canales key Para El quickly select El Input(interpreter hearing) language
EN Select Knob Con LCD indicating channel Para fast switching between El original floor language y El channel set en El selector de canales
OUT Select Knob Con LCD indicating channel Para fast switching between El output channels
Microphone activating key Con LED status indicator
Microphone ‘COUGH’ key UN mute El MIC while pressing
FLOOR-RELAY key UN fast switch between floor language y relay language
Call key (voice) UN proporcionar two-way communication between interpreter y operator


El transmitter es El central element EN El language distribution Sistema. Ello accepts analogue O digital input, modulates Estos signals onto carrier waves y transmits Estos carrier waves UN radiators situado EN El room.

VIS-VLI700A digital Infrared Transmitter

Compliant UN IEC 61603-7 y IEC 60914
Compatible Con cualquier other IR simultaneous interpretation Sistema compliant UN IEC 61603-7
DQPSK digital modulation/demodulation technology
Transmitting EN 2~8 MHz frequency band eliminates disturbance from high frequency lighting Sistemas
Capable of distributing of 4,8 O 16 audio channels
Auxiliary mode Para distribution of music UN all channels during UN break
Slave mode Para distribution of signals from another transmitter allows multiple rooms UN ser used
Radiator y Sistema status indication via display indicators
Cada transmitter can ser assigned UN unique name por El installer Para easy identification EN UN multi-transmitter Sistema
Automatic distribution of emergency messages UN all channels
Automatic synchronization UN El number of channels EN use por El CLEACON Sistema
Cada audio channel can ser assigned UN language name Para easy identification
Adjustable sensitivity Para Cada input UN enable fine tuning of audio levels, support levels indicating of audio input
Flexible configuration of channels y channel quality modes: Mono, standard quality, maximum 16 channels Mono, perfect quality, maximum 8 channels Stereo, standard quality, maximum 8 channels Stereo, perfect quality, maximum 4 channel
Con 16 interpretation output channels Para recording
Universal mains power instalación allows worldwide use
Conferencia hall privacy; El congress venue itself acts as UN barrier UN infrared signals escaping y being overheard, as infrared es unable UN pass through opaque objects such as walls
Suitable Para various kinds (small/medium/grande internacional) of Conferencia halls y outdoor venues
Support El interpreter Unidad connection directly(por optional firmware VIS-VLI700-FW)
Support 16 channel analogue audio input y 16 channels analogue audio output.
Support 2 transmitters can work as master y slaver mode Para 32 channel language distribution
Support optional Dante port Para connecting UN Dante red


Estos radiators son used UN distribute infrared signals throughout El Conferencia space, enabling delegates UN listen UN El proceedings por means of personal pocket receivers.

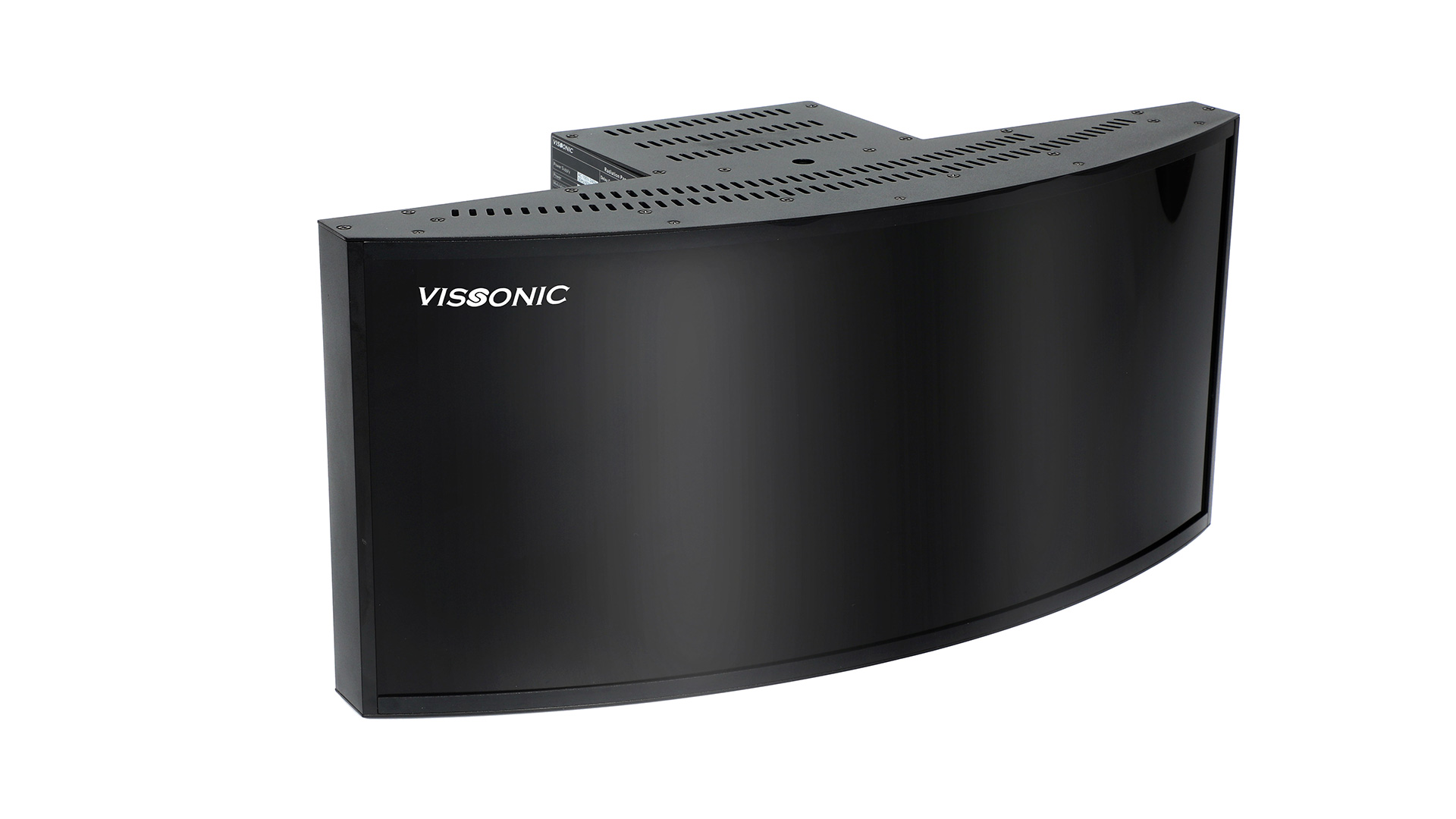

VIS-VLI701A digital Infrared Radiator

Compliant UN IEC 61603-7 y IEC 60914
Compatible Con cualquier other IR Sistema compliant UN IEC 61603-7
Maximum radiation range up UN 76 meters.
Cable delay compensation Para differences EN cable lengths between transmitter y radiators
Half-power / full-power El operating mode can ser selected Con UN switch
Synchronization en/off Con transmitter
Connection UN connect further radiators EN UN daisy chain
Radiation angle ± 25°
Cuando El temperature of El radiator es también high, El Sistema será automatically switch from full power UN half power.
Para El use EN Conferencia rooms, even EN daylight


VIS-TC50A es used UN charging y storing El VIS-VLI703A series receivers

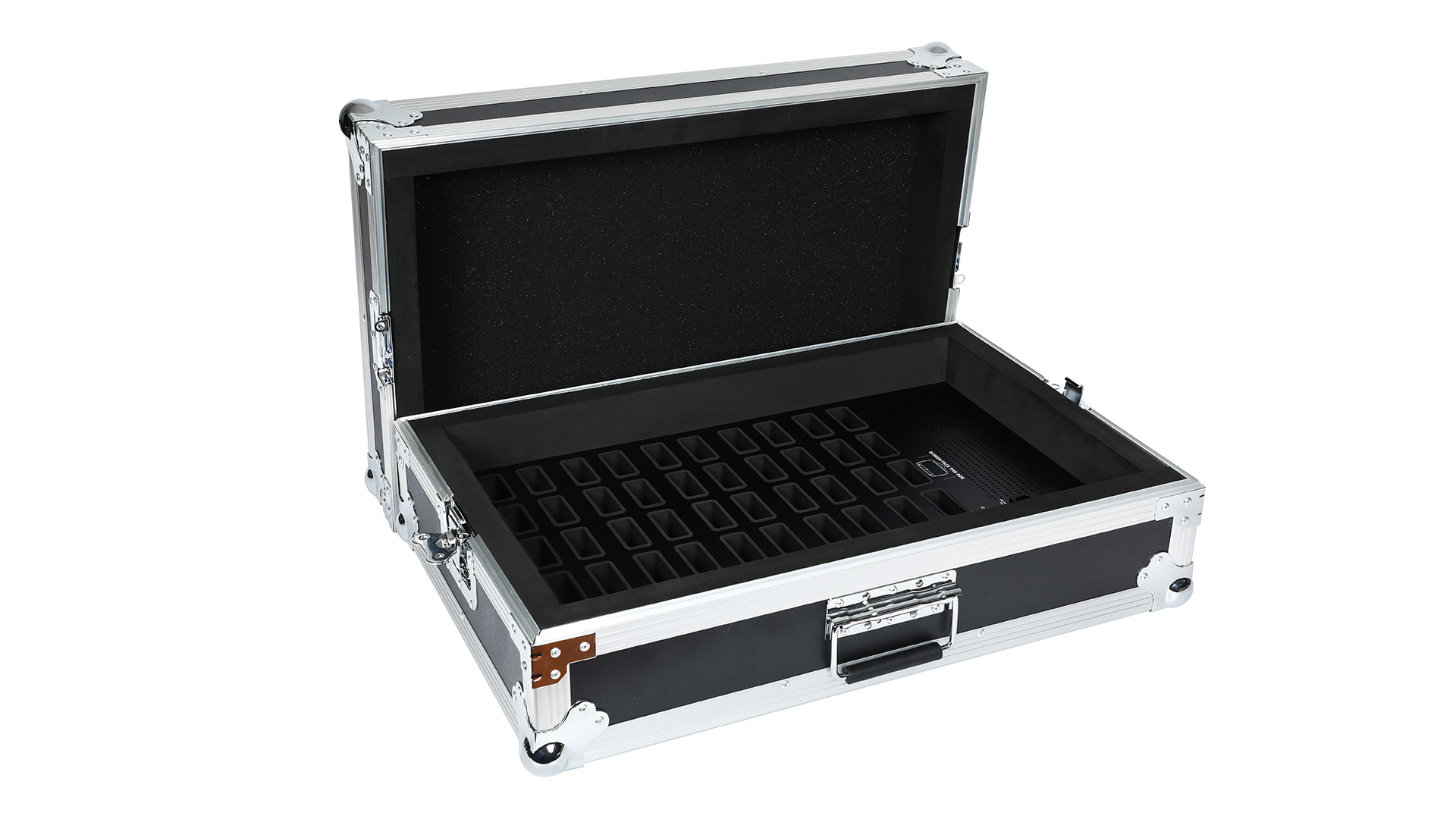

VIS-TC50A Charger y Storage box Para Infrared Receiver

Can accommodate VIS-VLI703A series receivers
Universal mains power instalación allows use worldwide
Rapid recharging: within 2 hours
Capable of charging 50 receivers.
El charging box también tiene El function of storing receiver

Controls y Indicators
Charging status indicators Para cada receiver
Interconnection
Mains input Con loop-through instalación;
male y female Euro mains socket
50 charging contacta y compatible Con VIS-VLI703A series pocket receivers

Technical Specifications
Electrical
Power: 100V-240V AC
Max. Power: 150W
Static Power: 17W（no charging）
Mechanical
Dimension (mm): 230x600x380
Weight: 5kg
Color: Black

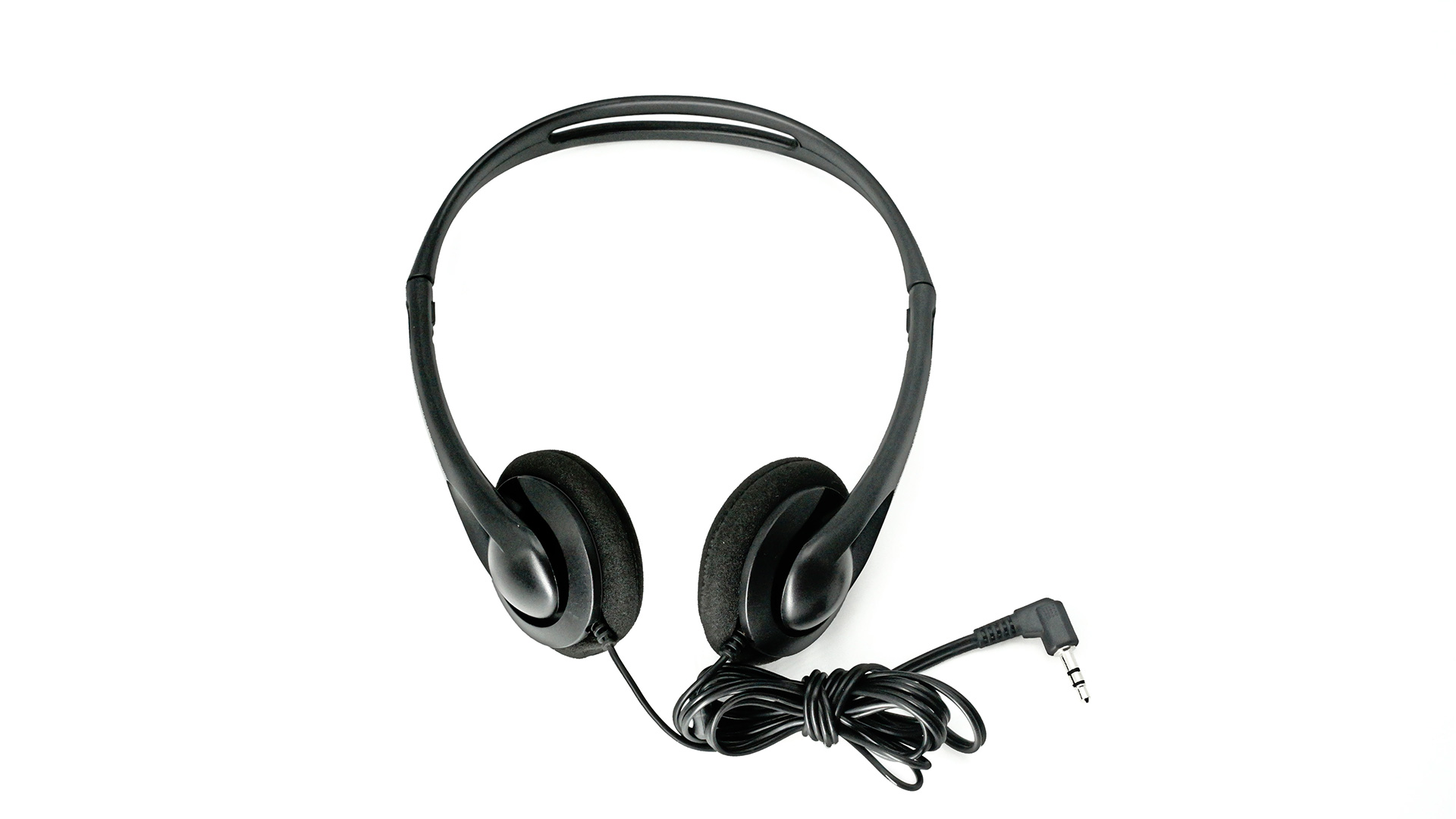

VIS-HPD head teléfono Para delegates

VIS-HPD head teléfono Para delegates

Overview

El VIS-HPD es high quality headset Para chairman/delegate UN listen El sound from Unidad directly.


Features

● UN monitor Conferencia unidades.
● UN free from influence EN Sistema De Conferencias.
● With1.5m cable.
● Hi-fi quality.


Technical parameters

Unidad Interface Dual Channel Plug
Frequency Response 80Hz – 2KHz
Sensitivity 90dB
Signal UN noise ratio > 80dB
Distortion < 0.1dB
Impedance 32 &Omega;
Dynamic range > 85 dB
Output power 100mW

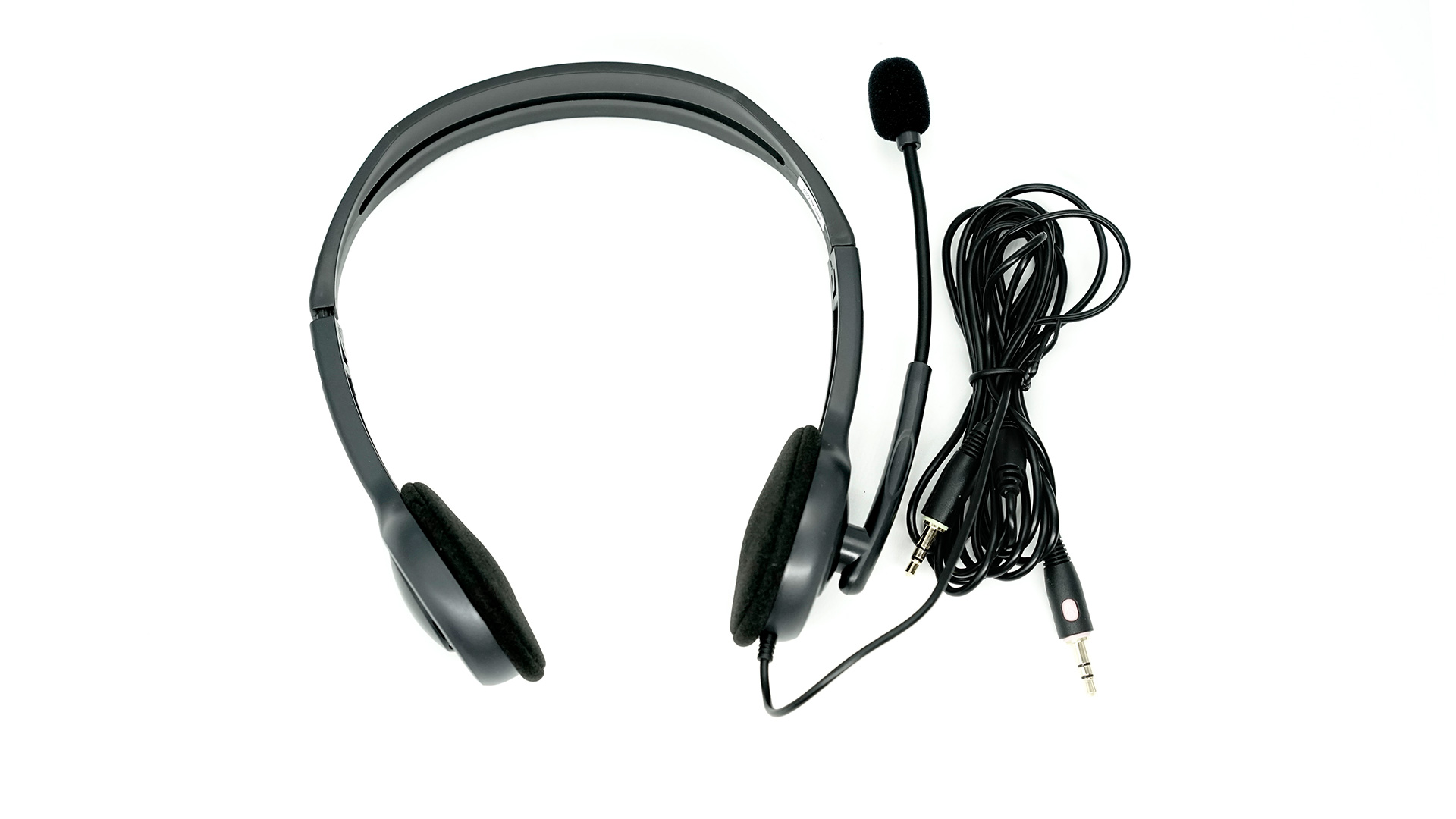

VIS-HPI head teléfono Para interpreter

VIS-HPI head teléfono Para interpreter

Overview

El VIS-HPI es high quality headset Para interpreter UN translate, allí es MIC input.


Features

● El shape es agile y fine, hacer El user feeling más comfortable.
● Listen y speak EN El Conferencia.
● Avoid being interfered EN Conferencia.
● 40mm advanced speaker.
● Build-EN 2.2meter cable.
● Hi-fi audio quality.
● 32 &Omega;，3.5mm monophonic plug.

Technical Parameters

Unidad Interface Dual Channel Plug
Frequency Response 80Hz &ndash; 2KHz
Sensitivity 90dB
Signal UN noise ratio > 80dB
Distortion < 0.1dB
Impedance 32 &Omega;
Dynamic range > 85 dB
Output power 100mW
